450AJ

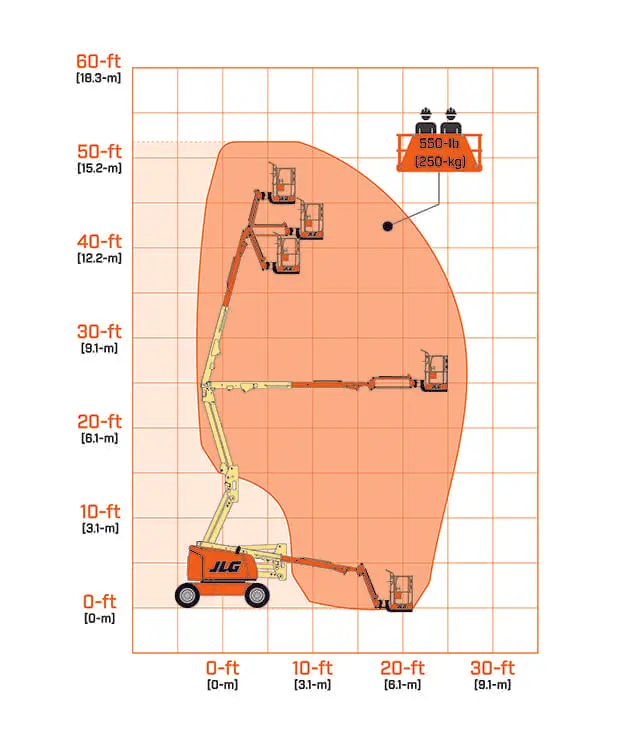

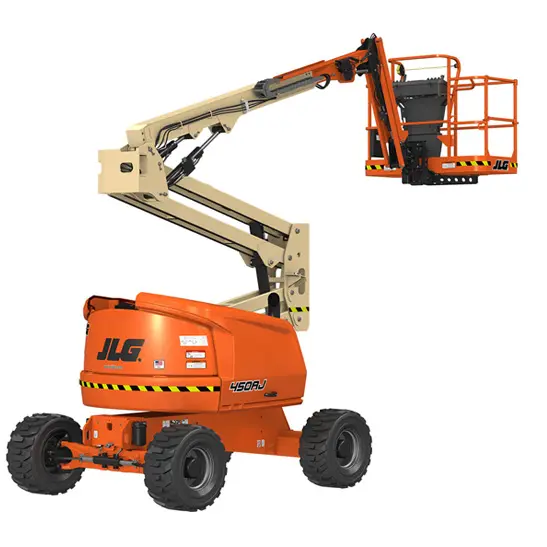

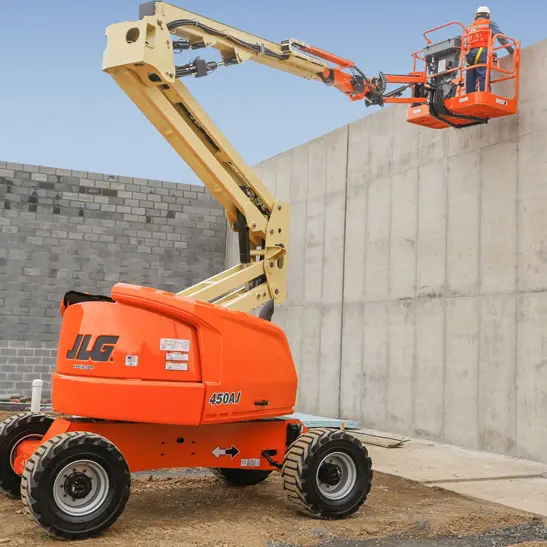

The JLG® 450AJ Articulating Boom Lift is designed to handle demanding tasks with flexibility and power, offering a platform height of 13.72 meters and a horizontal outreach of 7.47 meters. With a 230 kg unrestricted platform capacity and a 7.67-meter up-and-over clearance, it provides excellent access for jobs in confined or obstructed areas. The articulating jib enhances positioning capabilities, while the powerful Deutz 36.4 kW engine and Control ADE® system deliver smooth, efficient operation. Optional features such as SkyPower®, SkyWelder®, and integrated lighting make the 450AJ a versatile and reliable solution for various industrial and construction applications.

MAIN FE ATURE S
■Oscillating Axle
■ 2-Wheel Drive or
4-Wheel Drive
■Control ADE® System
■ Operator Tool Tray
■ Easy Access Swing-out Engine Tray

Specification

Model 340AJ 450A 450AJ 510AJ
Platform Height 10.31 m 13.72 m 13.72 m 15.81 m
Platform Capacity (Unrestricted) 230 kg 230 kg 230 kg 230 kg
Horizontal Outreach 6.06 m 7.47 m 7.47 m 9.48 m
Up and Over Height 5.17 m 7.67 m 7.67 m 7.67 m
Overall Width 1.93 m 2.34 m 2.34 m 2.34 m
Weight 4,400 kg 5,900 kg 6,250 kg 7,650 kg
Diesel Engine Kubota D1105 – 18.5 kW Deutz D2011L03 – 36.4 kW Deutz D2011L03 – 36.4 kW Deutz D2011L03 – 36.4 kW
SkyPower®
SkyWelder®
Light Package
